Managing MCP servers in the admin UI

The MCP Servers section of the admin panel lets you register, test, and enable Model Context Protocol servers at runtime, without editing mcp-server.yml or restarting the application. Tools exposed by an enabled MCP server are merged with the local tool registry and become callable by the LLM like any other tool.

This admin UI replaces the legacy single-server boot-time mcp.sse.url configuration introduced in earlier releases. Existing mcp-server.yml entries continue to work, but new deployments should prefer the admin UI.

Navigate to MCP servers

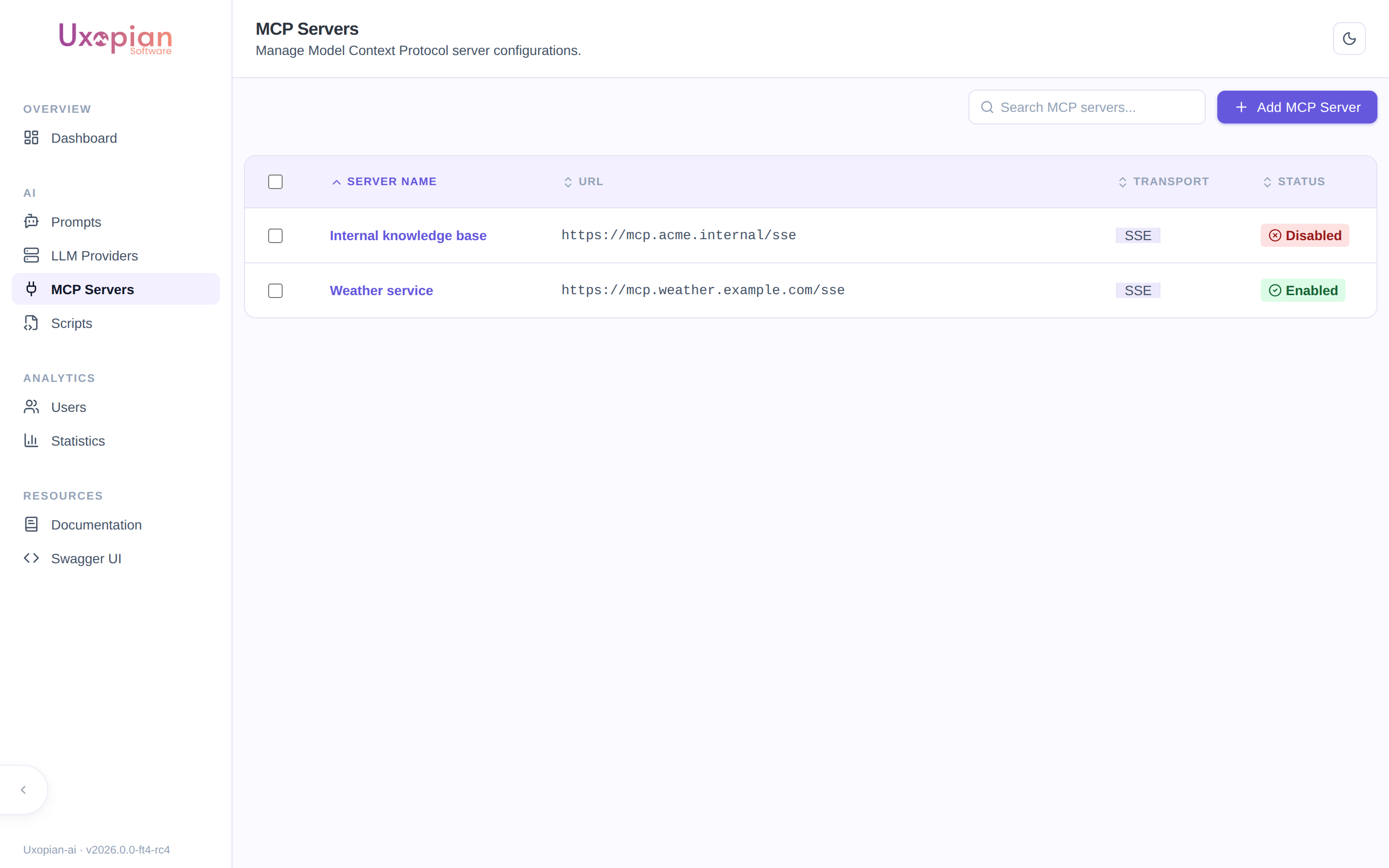

In the admin panel, click MCP Servers in the navigation. The page lists all MCP configurations registered for the current tenant, with a column for each server's enabled state and last-known connection status.

Multi-tenant isolation

Connection dedup key — two configurations share the same underlying SharedMcpClient if and only if they are equal on the triple (url, transportType, headers). Any difference in headers — even a non-authentication header like User-Agent — produces a separate pool entry.
Authenticated connections — any MCP server whose headers map contains credentials (e.g. Authorization) is scoped to its tenant. Two tenants using the same MCP endpoint with different credentials result in two independent client instances.
Unauthenticated connections — identical unauthenticated endpoints (same URL, same transport, no custom headers) are shared across tenants via a pooled client (SharedMcpClient) with reference counting. This avoids opening N connections when N tenants point at the same public MCP server.
Cluster sync — when a configuration is saved, updated, or deleted, uxopian-ai publishes an McpConfChangedEvent through the Hazelcast event bridge so every node in the cluster invalidates its cached MCP client for the affected configuration without a restart. The bridge is gated by @ConditionalOnBean(HazelcastInstance.class) plus the property mcp.cluster-sync.enabled, so single-node deployments and integration-test profiles can opt out cleanly.

Add an MCP server

Click Add MCP server.
Fill in the form:

Field	Description
Name	Human-readable identifier for this configuration (unique per tenant).
URL	MCP server endpoint (e.g. `https://mcp.example.com/sse` for SSE).
Transport type	Transport protocol. `SSE` is the default and currently supported value.
Enabled	When off, the configuration is stored but not opened — use it as a draft or to temporarily disconnect without losing settings.
Timeout	Connection timeout in milliseconds. Default: `30000`.
Log requests	Log every request sent to the MCP server. Useful during setup.
Log responses	Log every response returned by the MCP server. Useful during setup.
Headers	Arbitrary HTTP headers sent with each request (e.g. `Authorization: Bearer <token>`). Header values are stored encrypted at rest.

Click Save. If Enabled is checked, uxopian-ai opens the connection immediately and registers any discovered tools.

Edit, enable, or disable

Click a configuration in the list to open its detail page. The editor exposes the same fields as the create form, plus a Test connection action (see below). Toggling Enabled on a saved configuration opens or closes the client across the cluster; no restart is required.

Test connection and discover tools

The Tools tab lists the tools currently exposed by the MCP server. uxopian-ai calls GET /api/v1/admin/mcp/mcp-conf/{id}/tools to perform a live discovery against the server, so this tab reflects the current server state, not a cached snapshot. Use this to:

Verify that credentials and the URL are correct.
Confirm which tools will be made available to the LLM.
Troubleshoot an MCP server that appears not to respond.

Delete

Deleting a configuration closes the MCP client, removes it from the OpenSearch mcp_configurations index, and publishes the change across the cluster. Tools exposed by the deleted server are unregistered from the active tool list on all nodes.

REST API

The admin UI is a thin wrapper around /api/v1/admin/mcp/. All endpoints require the ADMIN role and operate on the current tenant.

Method	Path	Description
`GET`	`/mcp-conf`	List all MCP configurations for the current tenant
`GET`	`/mcp-conf/{id}`	Fetch a single MCP configuration
`POST`	`/mcp-conf`	Create an MCP configuration
`PUT`	`/mcp-conf/{id}`	Update an existing MCP configuration
`DELETE`	`/mcp-conf/{id}`	Delete an MCP configuration
`GET`	`/mcp-conf/{id}/tools`	Live-discover the tools exposed by the server

Request body schema (McpConf):

{
  "name": "openai-mcp",
  "url": "https://mcp.example.com/sse",
  "transportType": "SSE",
  "enabled": true,
  "logRequests": false,
  "logResponses": false,
  "timeout": 30000,
  "headers": {
    "Authorization": "Bearer <token>"
  }
}

Common issues

Symptom	Cause	Resolution
Configuration saved but no tools show up	Enabled left off, or transport URL unreachable	Toggle Enabled on, run Test connection to validate connectivity.
Tools duplicated across tenants on a shared public MCP	Added custom headers make the client appear authenticated and per-tenant	Remove tenant-specific headers if the server is truly public; shared pooling reactivates automatically.
Changes on one node not visible on another	Hazelcast event bridge not reachable	Verify Hazelcast cluster formation (see `hazelcast.yml` and the network policy between pods).
Credentials visible in request logs	Log requests enabled	Turn Log requests and Log responses off once the server is validated.
