Install in ICN

We continue here the installation but in the ICN module of FileNet.

Prerequisite​

Concerning SSO between ICN and ARender, cross-domain SSO is not supported, for example z.AAAcompany.com and w.BBBcompany.com - where the DNS domains are different. More information here: https://www.ibm.com/docs/en/was-nd/8.5.5?topic=authentication-single-sign-using-ltpa-cookies

Retrieve the ARender Web-UI archive​

Using the username and password beforehand provided, you can retrieve the navigator plugin here

ARender and IBM Content Navigator​

Sharing the LTPA key​

Thus, you will need to configure LTPA in order to enable session sharing between IBM Content Navigator and Arender Web-UI:

  • Export the LTPA CPE key

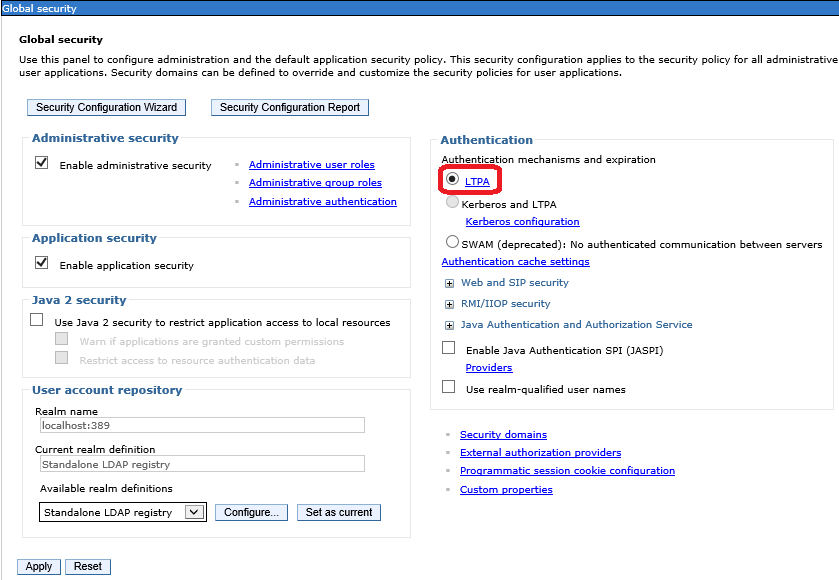

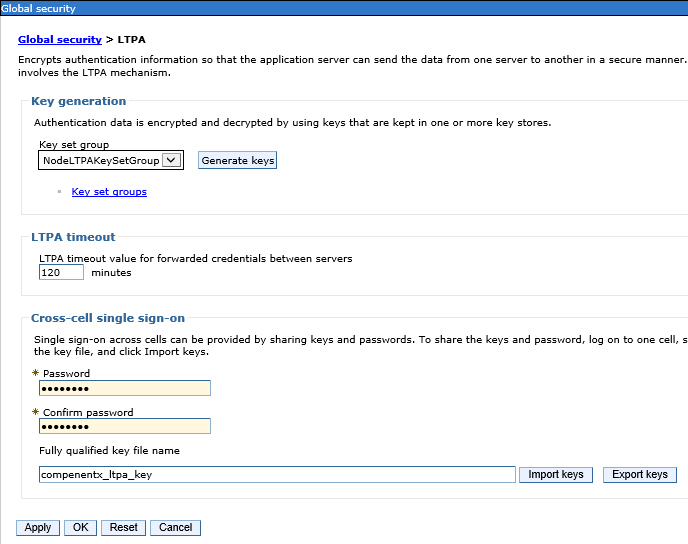

In WebSphere Administration Console of the CPE, navigate to Security > Global Security, under Authentication, click LTPA

filenet

  • Specify a password, a filepath, and click "Export keys"

filenet

  • Import the LTPA CPE key in the ARender JVM

Copy the key in hte ARender Web-UI server.

Then import this key in ARender, like below:

  • Using the WebSphere Administration Console, navigate to Security > Global Security, under Authentification, click LTPA
  • Fill in the same password you entered when exporting the keys
  • Specify the path where you copied the keys
  • Click Import keys
  • Save the modifications

Session invalidation when switching user​

Since ICN version 3.0.6, if you change of user on the same session then you will get an error message when opening a document with the new user which will look like this:

Error

Error 500: com.ibm.websphere.servlet.session.UnauthorizedSessionRequestException: SESN0008E: A user authenticated as user:localhost:389/CN=userB,CN=Users,DC=ircem,DC=dev has attempted to access a session owned by user:localhost:389/CN=userA,CN=Users,DC=ircem,DC=dev

The session of the user userA was not invalidated when he disconnected, which will cause the error when opening a document by user userB. There is a property to add in a WebSphere console which will make it possible to invalidate a session on which an unauthorized request is made. This session invalidation will allow the recovery of the correct username by ARender.

Adding the property​

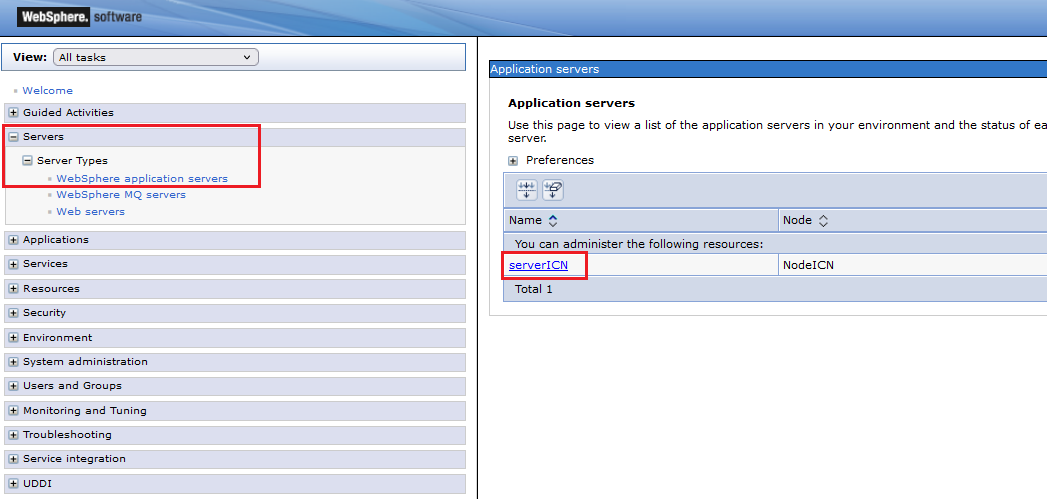

  • Go to your websphere console then in the menu go to servers -> server types -> websphere application servers.
  • Select the server on which you want to make the modification. In our example, we choose serverICN

filenet

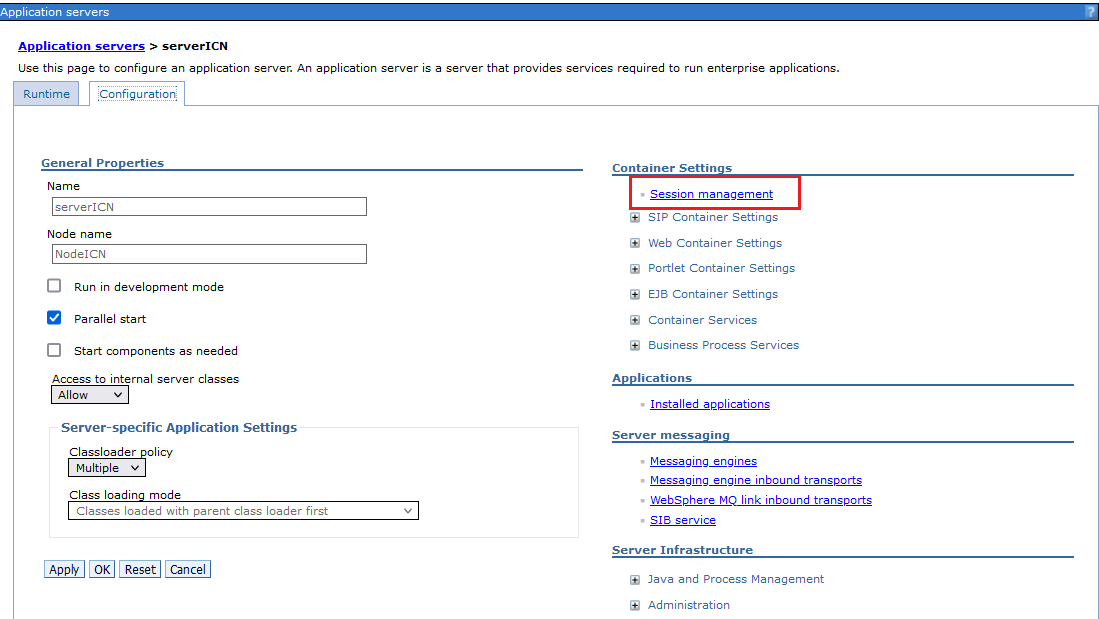

  • In Container settings go to Session management.

filenet

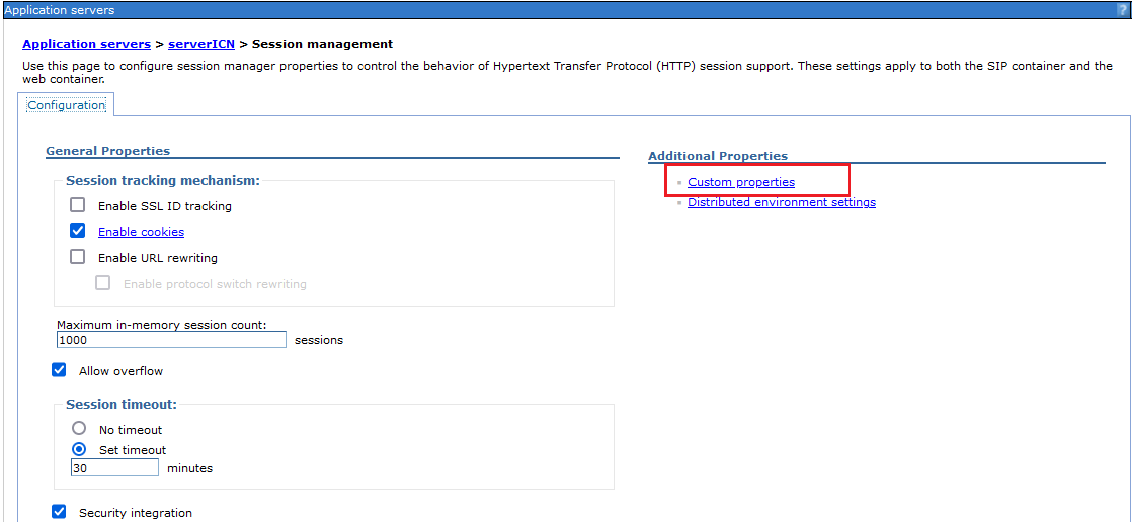

  • In Additional properties, click on custom properties.

filenet

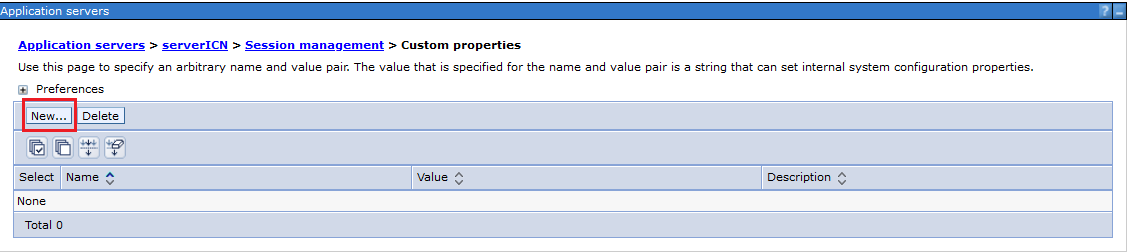

  • Click on New... to add the property.

filenet

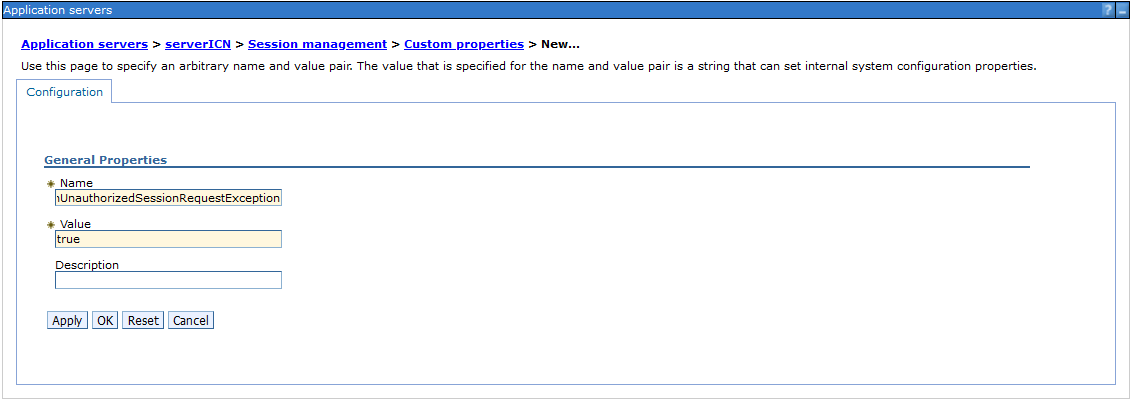

  • Add the property InvalidateOnUnauthorizedSessionRequestException with the value true so that it is applied.

filenet

  • You must then click on Ok then save. Restart your Filenet services to take this property into account.

Integration of the arender plugin for FileNet​

A specific plugin has been implemented to integrate ARender within ICN. Nota: ICN connector uses mixedObjects syntax.

Connect to Content Navigator.

Go to the ‘Administration View’ and click on ‘Plug-ins’

filenet

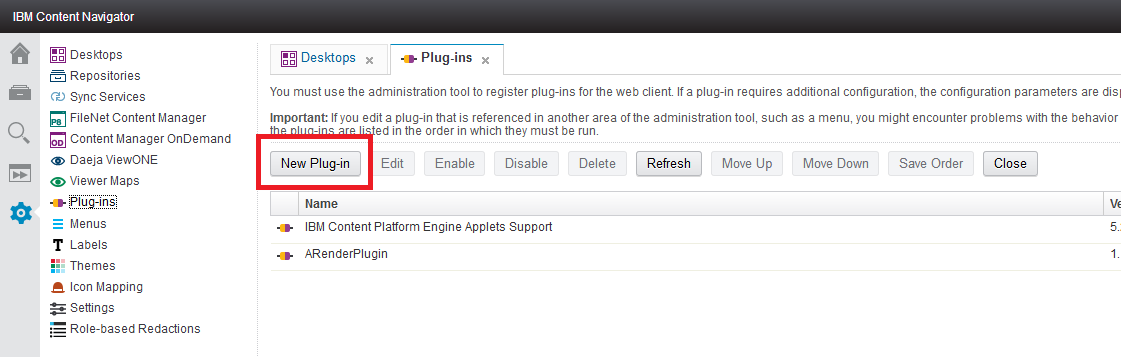

Click on the button "New Plugin-in".

filenet

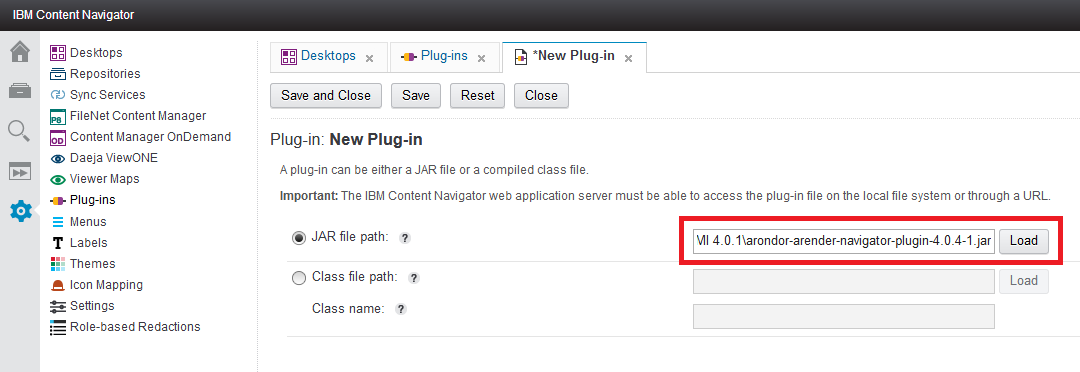

Enter the JAR file path and click on ‘Load’.

filenet

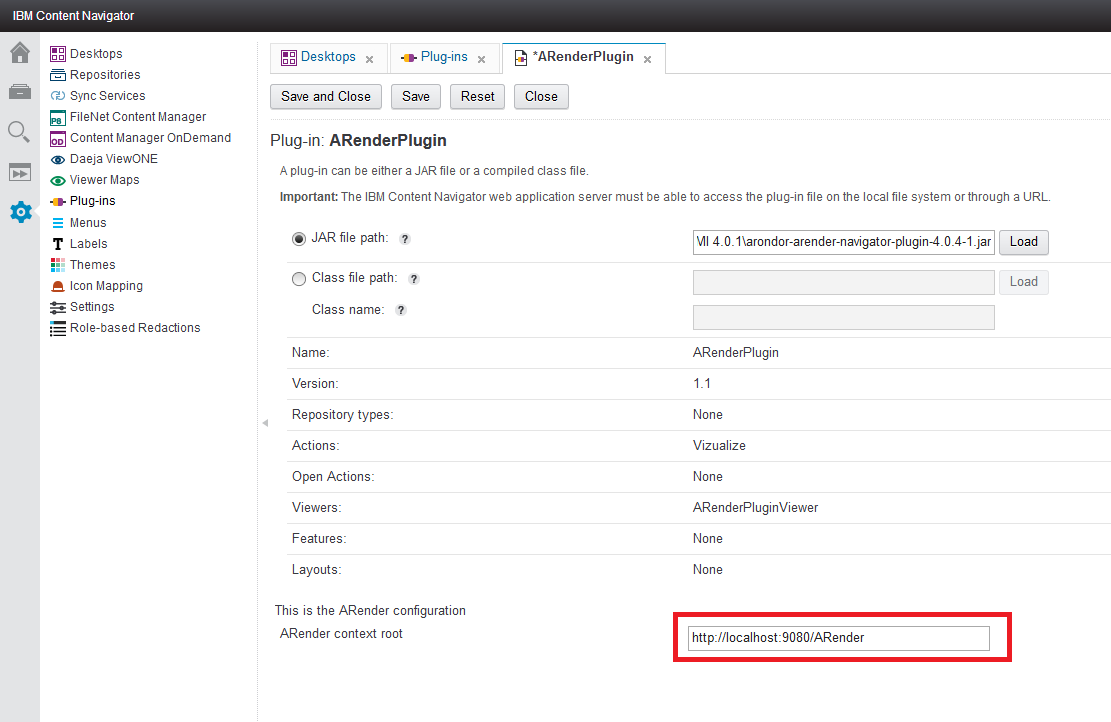

Fill ‘ARender context root’ field with ARender’s address (hots + port + context root). Like below:

filenet

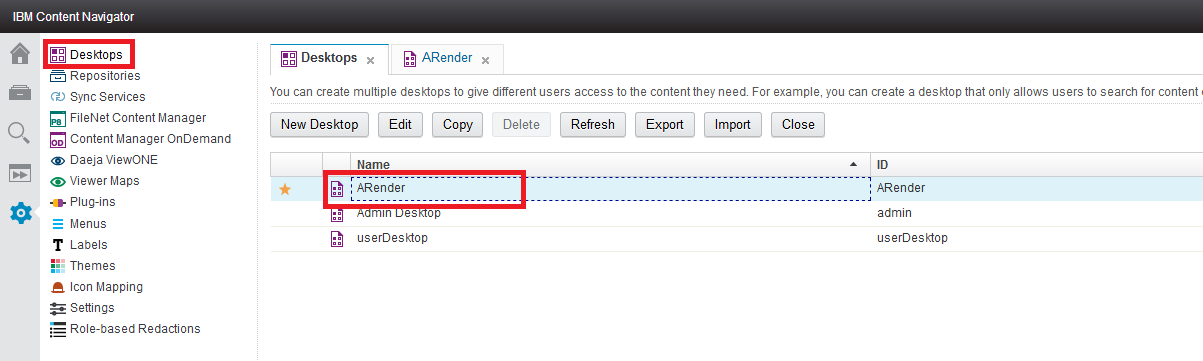

To use this Map, you just need to link it to a Desktop (Desktop tab -> Edit the desktop -> Select the Map in the Viewer Map list)

filenet

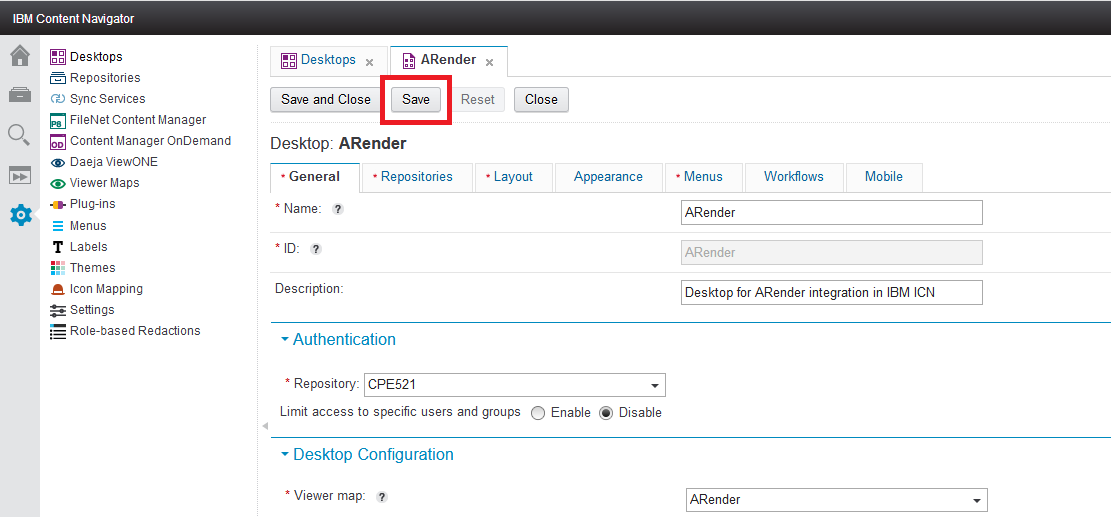

And finally, click on "Save".

filenet

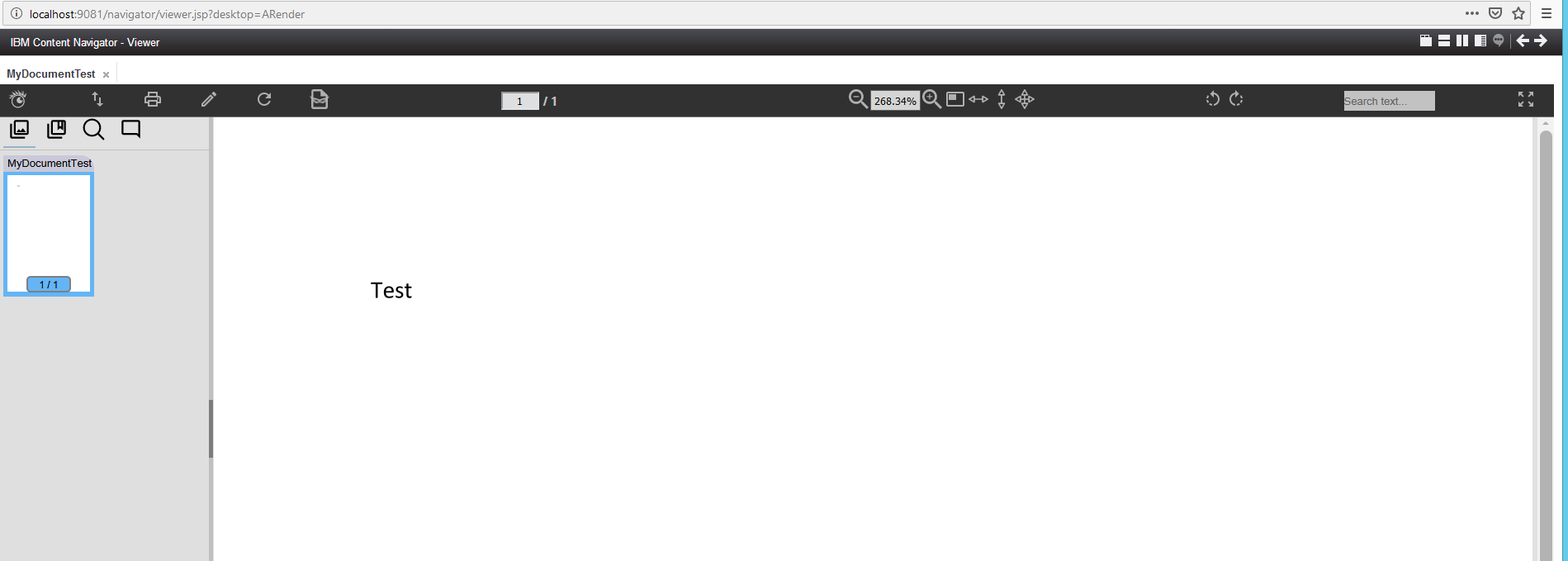

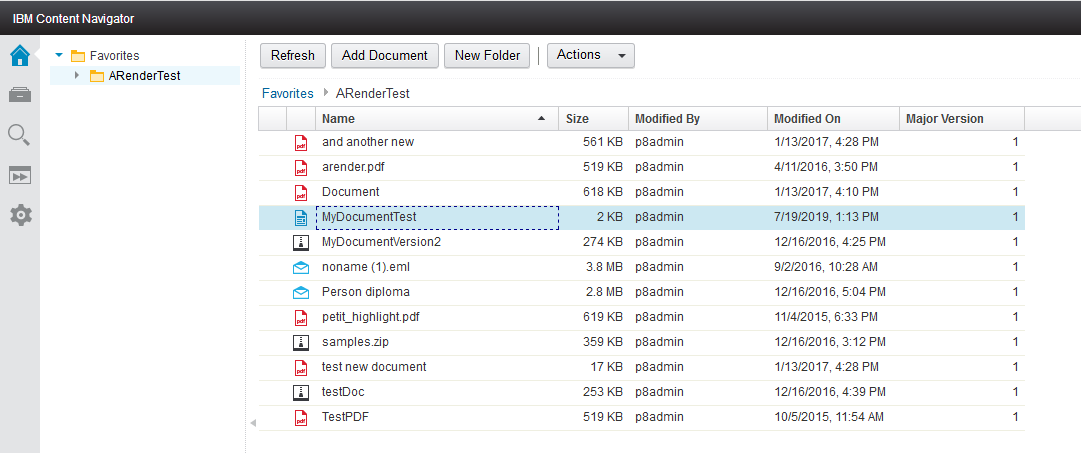

You can now restart your application servers and attempt to open a file in FileNet.

filenet

filenet

Use ARender advanced features directly from ICN​

End-users can use ARender Compare and Document Builder features directly from ICN.

Create a dedicated ICN menu to show ARender advanced feature​

  • In ICN, go in the Administration menu
  • Select Menus

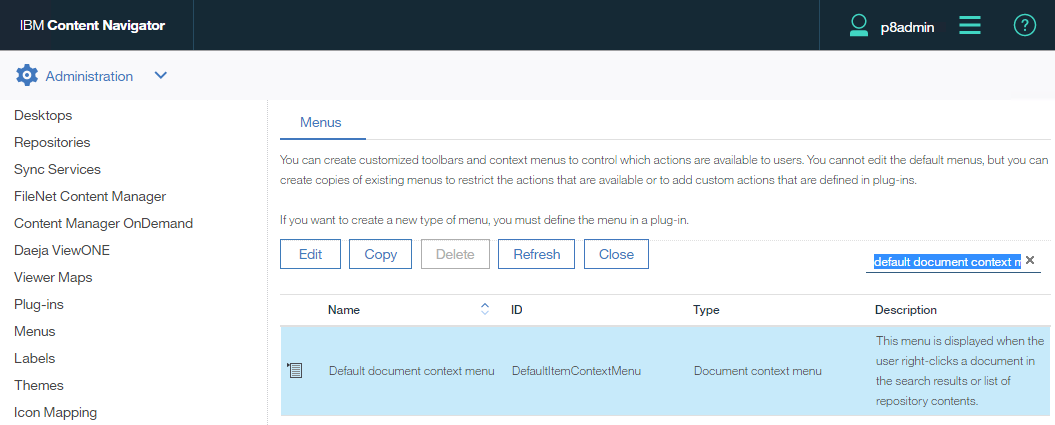

  • Search the Menu named Default document context menu

filenet

  • Right click on this menu and select Copy
  • Define a Name and a description to the new Menu

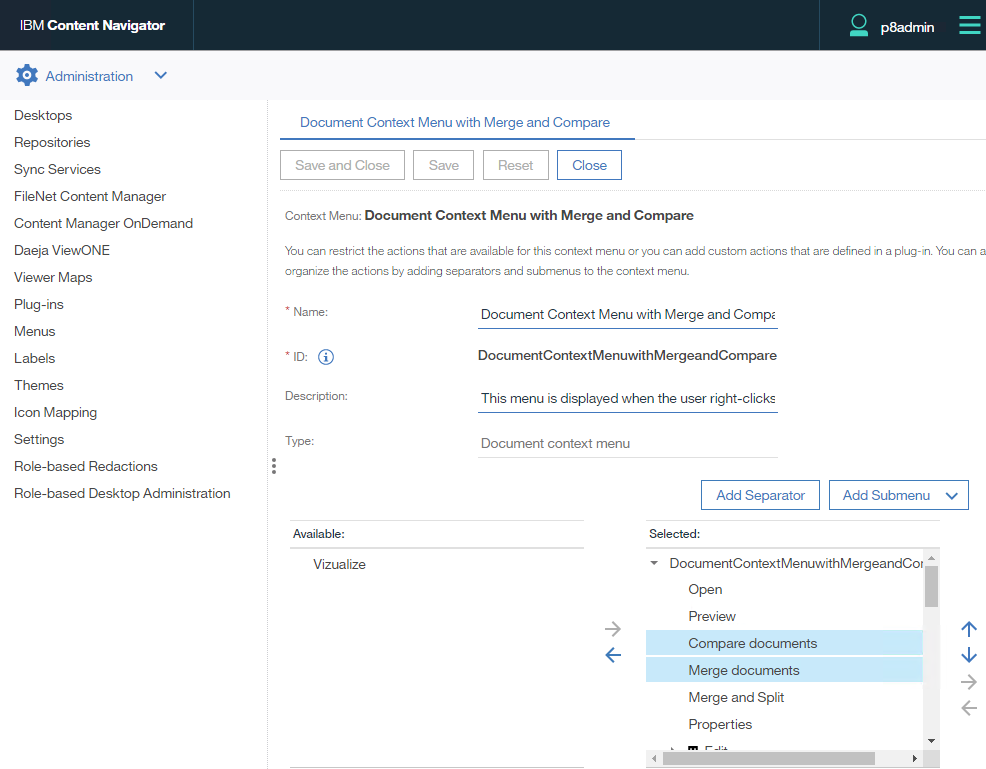

  • In the Available box select Compare documents and/or Merge documents action and add them into the Selected menu on the right

filenet

Add the created menu to the ICN Desktop​

  • In ICN, go in the Administration menu
  • Select Desktops
  • Select the Desktop to update
  • Select the tab Menus

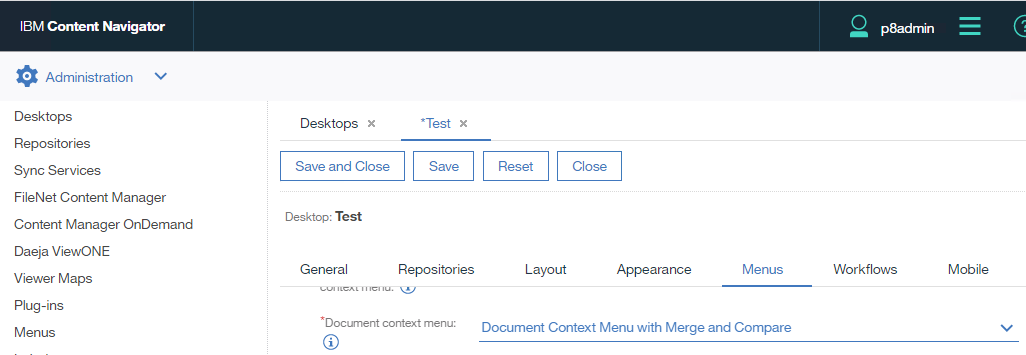

  • Search for the Menu named Document context menu
  • In its drop-down list value, select the menu you created above

filenet

Use ARender compare feature​

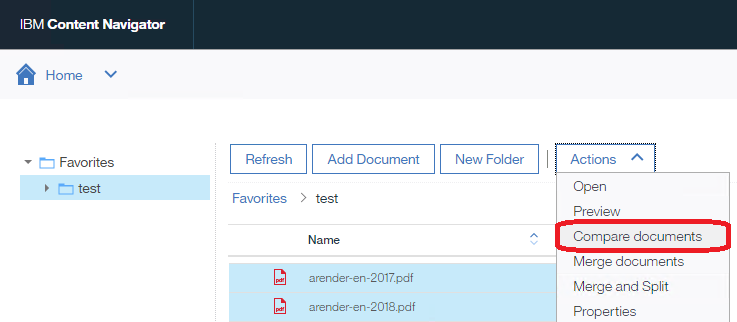

To compare document, you have to select two documents and select Compare documents from ICN Action menu or using right click

filenet

Use ARender Document Builder feature​

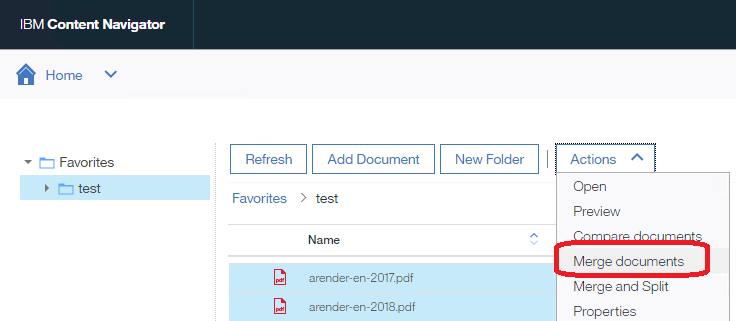

To merge and split documents, you have to select at least one document and select Merge documents from ICN Action menu or using right click

filenet
